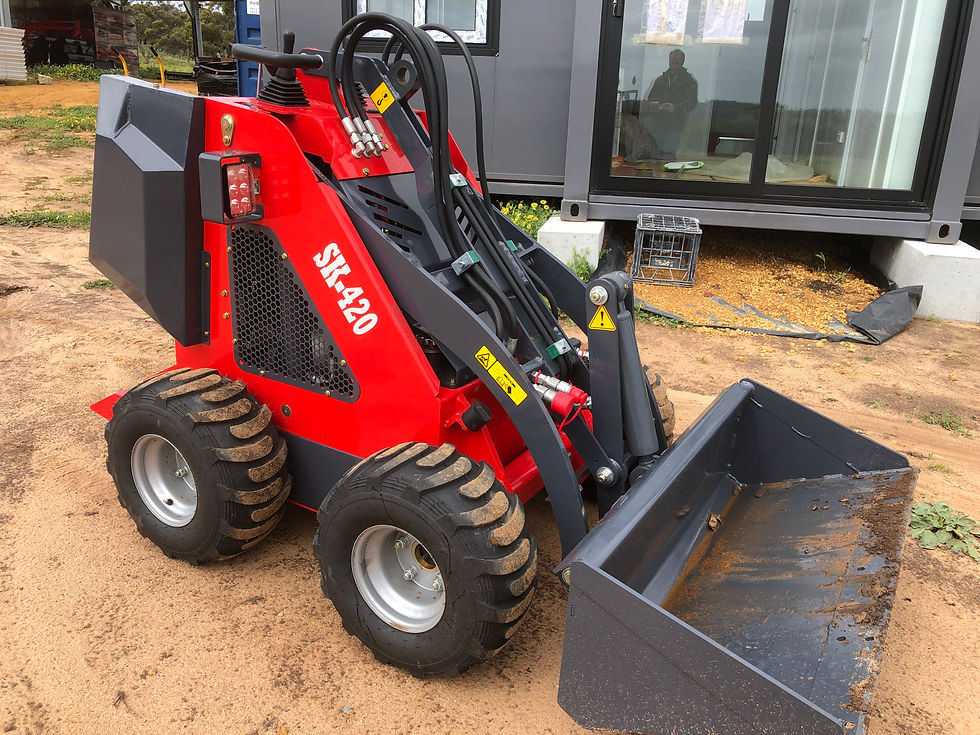

Discover the SK420 Briggs & Stratton from Maxduty Imports. This cost-effective mini skid steer is equipped with a robust 13hp engine, engineered for rigorous industrial tasks.
Its simple construction ensures ease of use and durability, suited for both small and large enterprises.
The SK420 boasts all-wheel drive with efficient chain mechanics, allowing smooth navigation over rough terrain.
Its front hydraulic line and GP bucket enhance versatility for various operations such as digging, lifting, and transporting materials.
Maxduty Imports is known for supplying reliable and affordable machinery. The SK420 showcases their dedication to quality and value, providing an economical solution for industrial requirements.
SK420 Briggs & Stratton
Specifications:
Briggs & Stratton 420cc XR Pro 13hp @ 3600rpm
Joystick Style controls
Commercial grade machine
2 years warranty on parts
International B&S warranty on engine

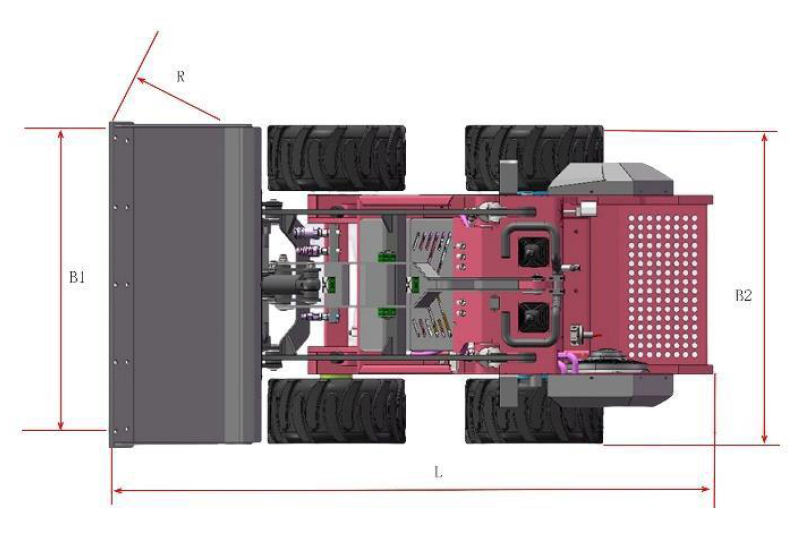

Max Working Height H3 - 2504mm
Max Pint height H2- 1951mm
Max Dumping Height H1 - 1423mm
Max Dumping Distance E - 100mm
Max Dumping Angle A3 - 53Deg
Rollback of Bucket on Ground - 32Deg
Departure Angle A1 - 17 Deg
Total Height H - 1210mm
Ground Clearance F - 133mm
Wheelbase L1 - 653mm
Overall lenght without bucket L3 - 1552mm
Total Width B2 = 1050mm
Bucket Width B1 - 1080mm
Total lenght with bucket L - 1992mm
Turn radius forward turning R 1205mm
Noise <95Db
Working pressure 17MPa
Raise time 4s
Dumping time 1.5s
Lowering time 3.2s
Operating load 260Kg
Bucket capacity 0.08m3
Max lifting force 300kg
Travel speed 0-6 Km/h
Operating weight 640kg
Self-Levelling Bucket
Standard dingo mount plate
