Pushing the boundaries of compact performance, the 2026 MaxDuty X1.2 is engineered for operators who refuse to compromise between power and agility.
Featuring a complete structural overhaul and an upgraded cooling system, this machine is built to dominate tight jobsites while maintaining peak efficiency under pressure.
Key Performance Upgrades
- Offset Boom & Boom Swing: The ultimate combination for tight-access work. The Offset Boom allows you to dig parallel to walls and foundations with precision, while the Boom Swing provides the flexibility to operate without slewing the entire chassis.

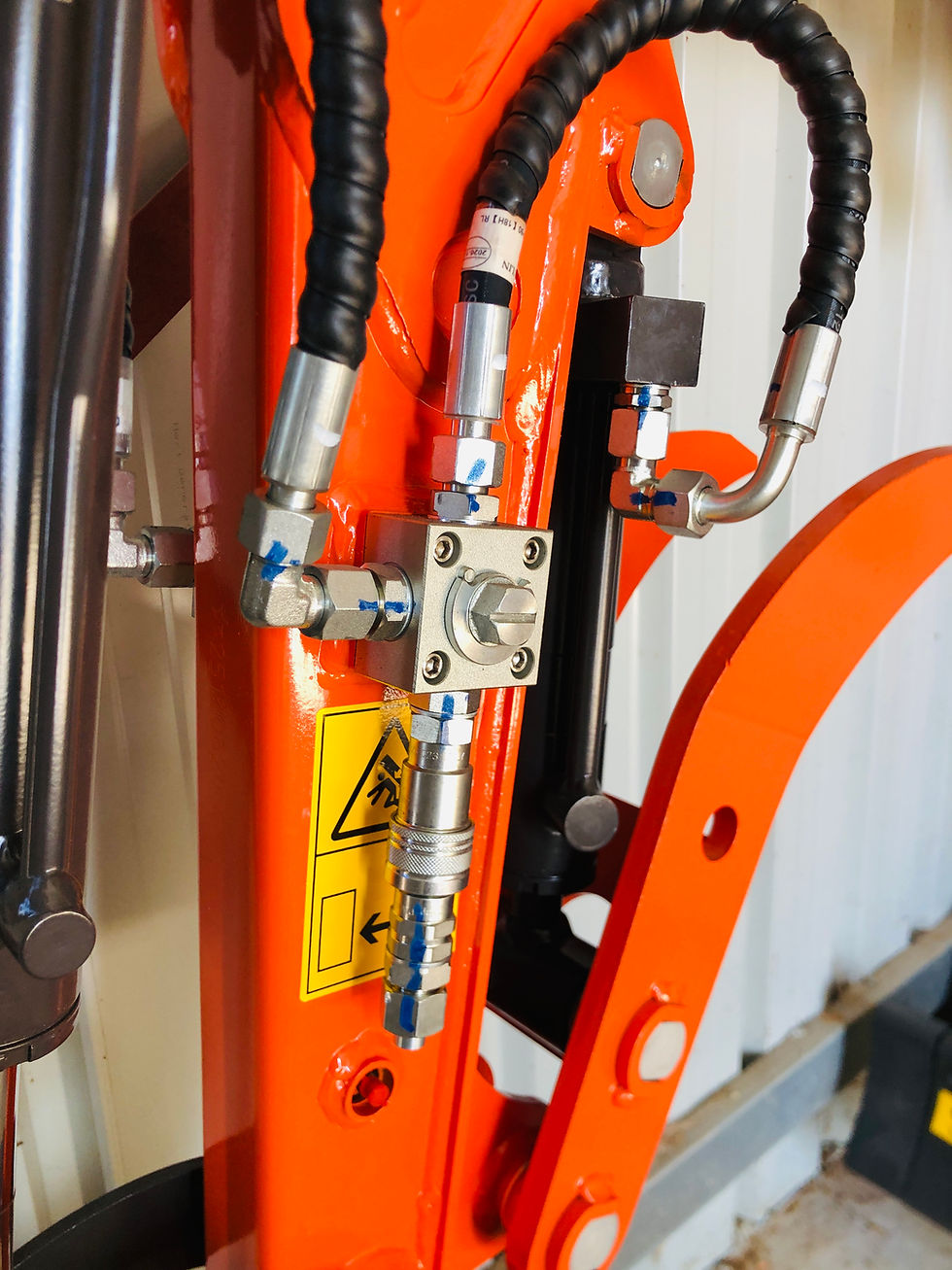

- Precision Hydraulics: Equipped with a premium Cast Iron Piston Pump and Rigid Hydraulic Lines. This combination minimizes pressure loss and maximizes resistance to wear, delivering smoother, more consistent breakout force.
- Thermal Management: Our innovative ducted air feed system pulls fresh air directly through the chassis, significantly lowering engine bay temperatures to extend component life during long Australian summer shifts.
- Enhanced Stability: The integrated Track Retainer System ensures your tracks stay locked on in rough terrain, reducing downtime and maintenance.
- Total Versatility: Navigate narrow gates with ease using Expandable Tracks (800mm to 950mm) and reach tricky angles with the dedicated Boom Swing function.
The Ultimate Attachment Bundle (Included)
We believe a machine is only as good as its versatility. The X1.2 comes standard with a comprehensive accessory suite to ensure you are ready for any task from day one:
Digging Buckets: 200mm & 350mm with teeth
Mud Bucket: 800mm
Precision Grading: 600mm Tilt Bucket
Land Clearing: Heavy-duty Rake & Ripper
Fencing & Footings: Post Hole Digger
The MaxDuty Advantage: The 2026 X1.2 isn't just a minor update—it's a ground-up refinement focusing on thermal efficiency and hydraulic longevity.
Whether you are a professional landscaper or a serious DIYer, the X1.2 delivers commercial-grade reliability in a compact footprint.
Ready to upgrade your fleet? Contact the team at MaxDuty.com.au today.
X1.2 PRO Mini Excavator
200mm Digging Bucket with Teeth
350mm Digging Bucket with Teeth
800mm Mud Bucket
600mm Tilt Bucket
Heavy-duty Rake
Ripper
200mm Post Hole Digger
Quick Hitch
Boom Swing
Retractable Tracks
Weight 940kg
Digging Bucket Capacity: 0.02 m3 / 100kg
Engine Koop 192 Diesel 7.6kW - 25Nm
Single Cylinder, Air Cooled, Forced to outside of engine bay
Max Travel Speed 1.3km/h
Swing Speed 11rpm
Max. Gradeability 30Deg
Gear Hydraulic Pump
Work Pressure 16MPa
Flow Rate 19L/Min
Hydraulic Oil Tank Capacity 16.5L
Fuel Tank Capacity 7.5L
Max digging radius on ground 2850mm
Max digging radius 2970mm
Max digging depth 1640mm
Max digging height 2600mm
Max dumping height 1970mm
Max vertical digging depth 1300mm
Min swing radius 1385mm
Max blade lifting height 325mm
Max blade lifting depth 175mm
Wheel base 910mm
Track Lenght 1235mm
Upper chasiss ground clearance 410mm
Counterweight turning radius 860mm
Chassis width 930mm
Track width 180mm
Track height 320mm
Transportation lenght 2245mm
Height of seat to ground 1530mm
Total height with roof 2240mm
Boom swinf left 55 deg
Boom swing right 50 deg
