Experience unmatched performance with the X2.0 from Maxduty.
This strong, reliable diesel excavator is designed with an excellent combination of power and size, featuring a robust Laidong 18.4KW diesel engine, DOBINSON filter, and Electric over Hydraulic controls.
Equipped for versatility, it comes with a 260mm trenching bucket with teeth, 430mm standard bucket with teeth, 1000mm mud bucket, Hydraulic Thumb, Offset Boom Swing, and Hydraulic Quick Hitch.
Ideal for heavy-duty industrial tasks, farms and construction sites; the X2.0 delivers reliability and efficiency in every operation.
Invest in quality and power you can depend on with the Maxduty X2.0.

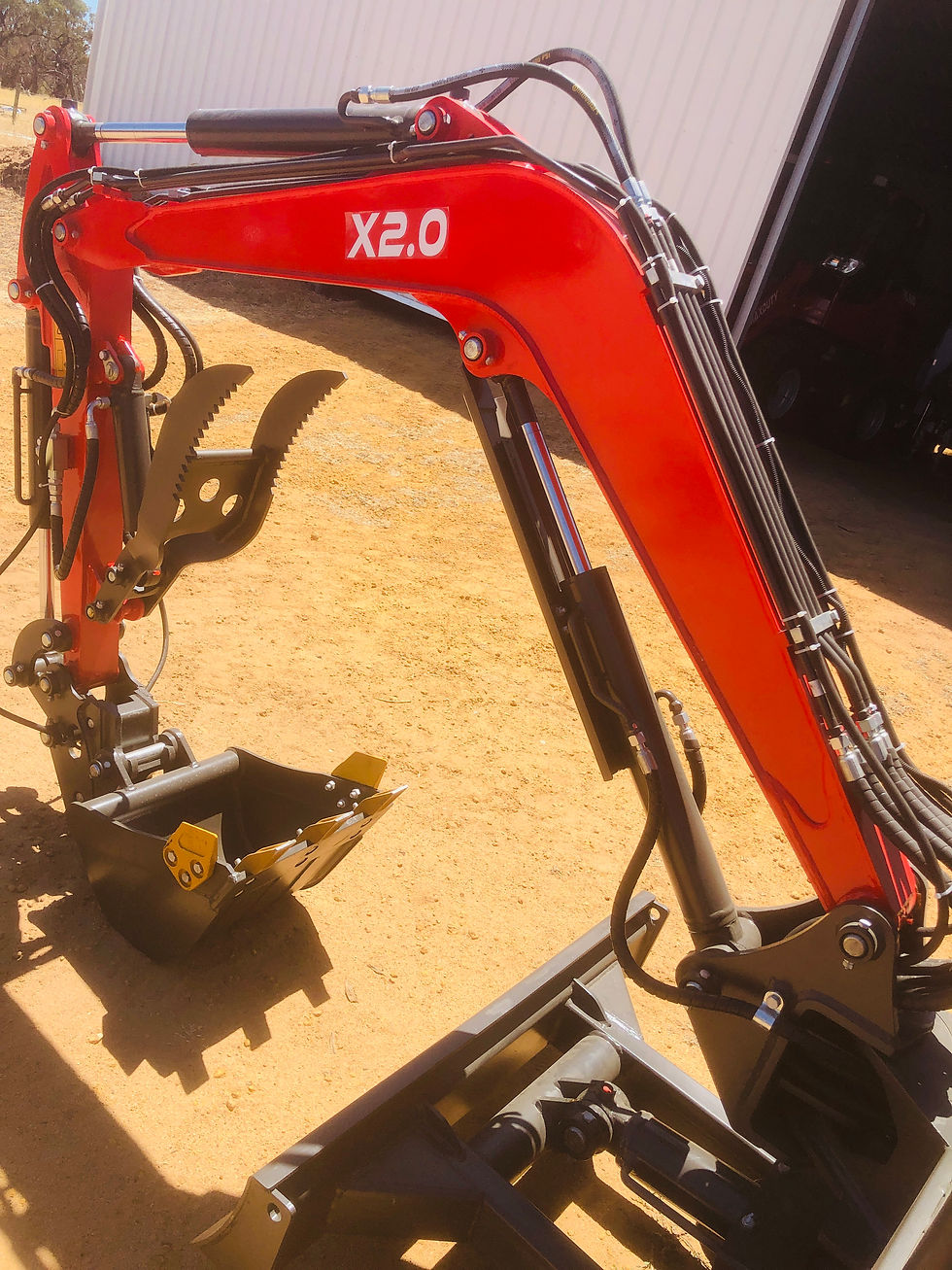

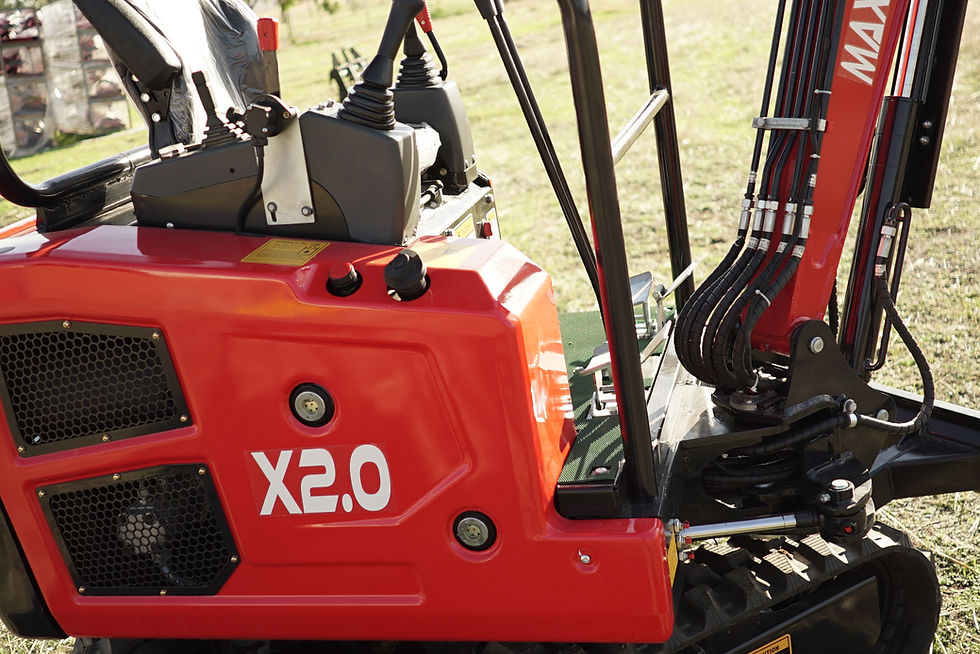

X2.0 - Excavator
SPECIFICATIONS:
ENGINE
Model Laidong
Power 18.4kw
TRACK SYSTEM
Maximum Travel speed 3.5km/h
Width of track shoe (Rubber & steel track) 230mm
Number of track shoe per side(Steel track only) 38 pcs
Number of upper roller/ bottom roller（per side） 0/4
PERFORMANCE PARAMETER
Standard bucket capacity 0.06m³
Swing speed 10~12 rpm
Max. Grade ability 35°
Max. Bucket digging force 14KN
Max. Arm digging force 10KN
Hydraulic system pressure 18Mpa
Machine weight 1970kg
MACHINE SIZE
Axle base(Track length on ground) 1230mm
Track gauge 820mm
Min.Ground clearance 210mm
Swing radius at tail 1125mm
WORKING RANGE
Max. Digging height 3365mm
Max. Dumping height 2385mm
Max. Digging depth 2050mm
Max. Vertical digging depth 1725mm
Max. Digging radius 3860mm
Min .swing radius 1720mm
Max. Lifting height of blade 230mm
Max. Cutting depth of blade 275mm
Boom swing angle(Left) 75°
Boom swing angle(Right) 45°
